CDI Box Mercury Outboard (Refer to Fitments) (RMS030-100048)

Brand New Aftermarket CDI Box

• The PeakRPM CDI Box provides optimal output for your ride.
• Fast and easy installation with a plug-and-play OEM design and included dielectric connector grease.
• OEM-grade electronic components and printed circuit boards for long-term reliability and performance.
• 90% of ignition issues are caused by a faulty stator. Fully test ignition components before buying.

All item pictures are accurate. If in doubt, compare the item to the original part.

Follow These Instructions:

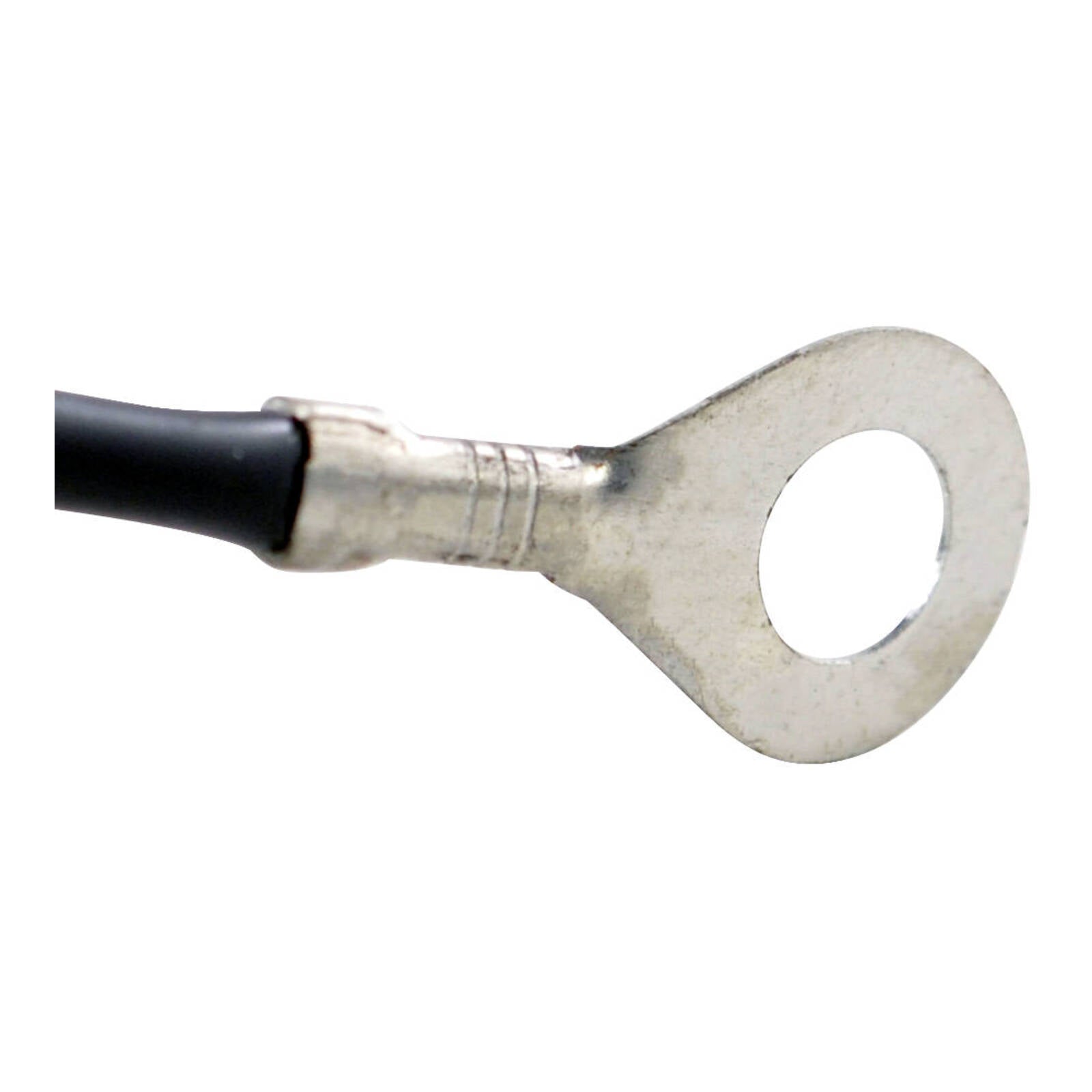

• If the black ground wire is not already connected to the CDI box, fasten it to one of the four mounting holes on the outside of the box.
• Fasten the other end of this black wire to a good ground spot on the engine.

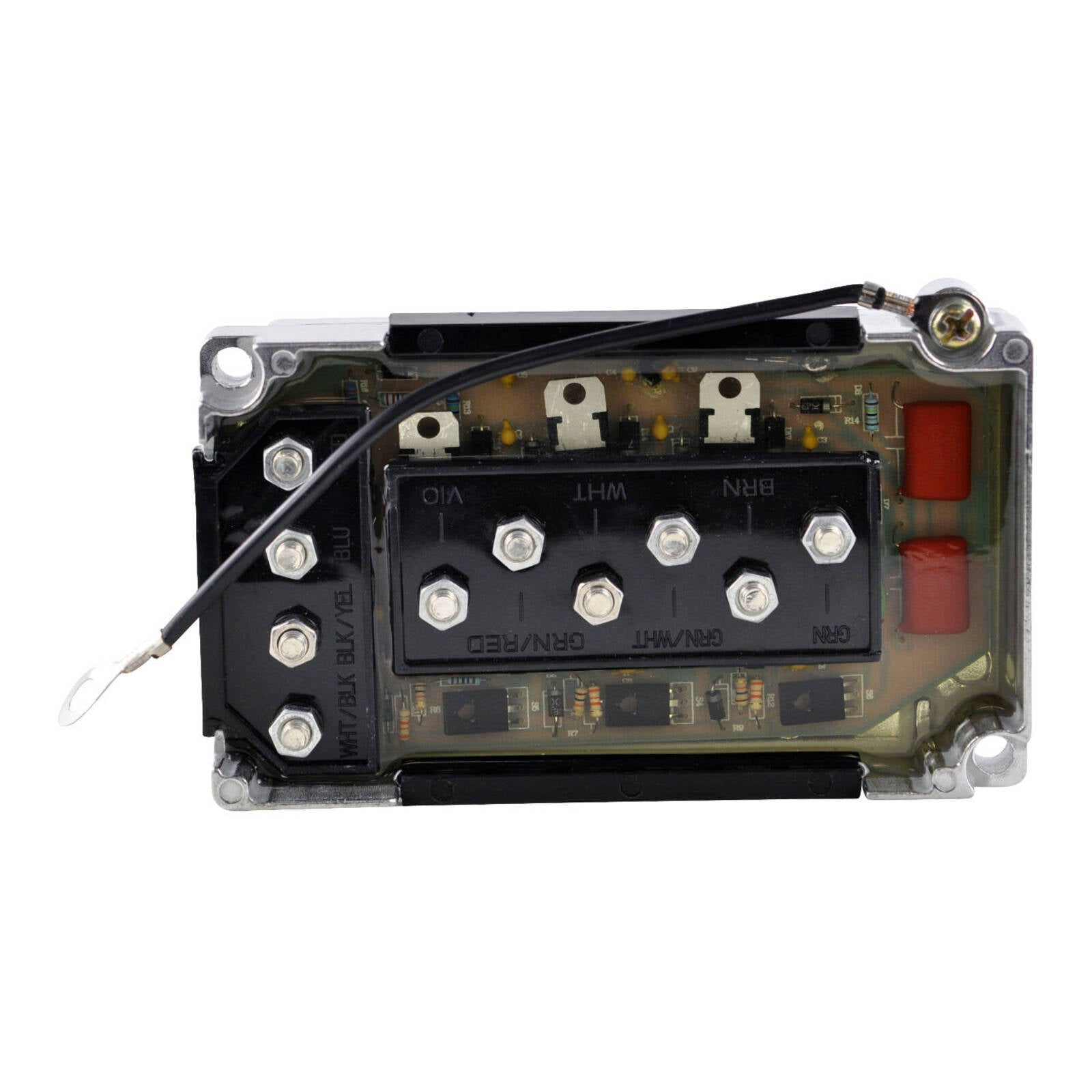

• If the engine uses an orange-coloured lead that is connected to the box, connect this to the "Black/Yellow" stud on the new box.

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Width: 79 mm.
• Length: 136 mm.
• Height: 26 mm.
• Fixation holes centre to centre: 143 mm.
