Stator Honda CRF250R / CRF450R '10-'12 (RMS010-107869)

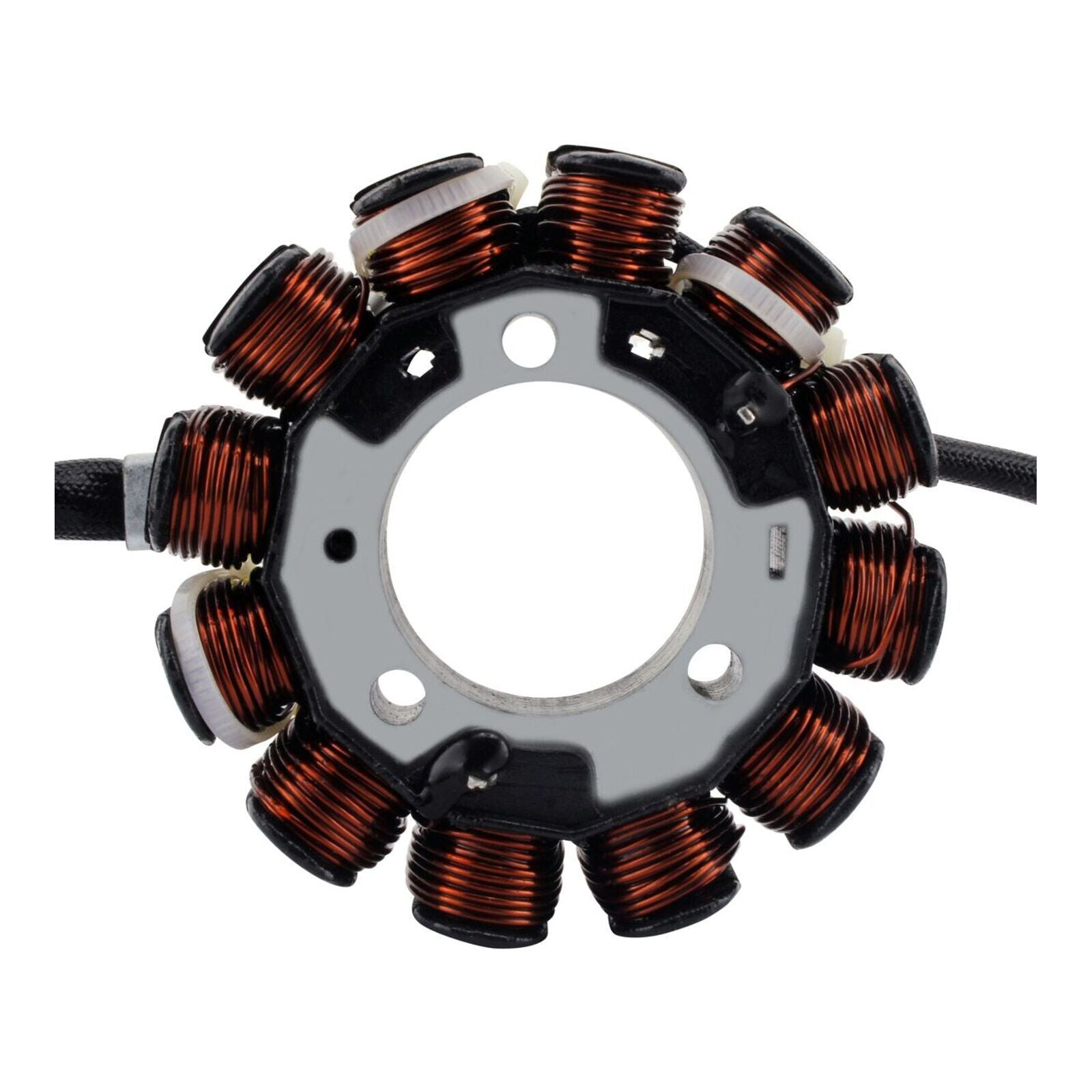

Brand new aftermarket stator.

• Direct replacement to the original unit
• Plug-and-play, direct fit, easy installation
• Highest grade of lamination materials
• Highest grade of copper winding, resistant to 200 degrees Celsius

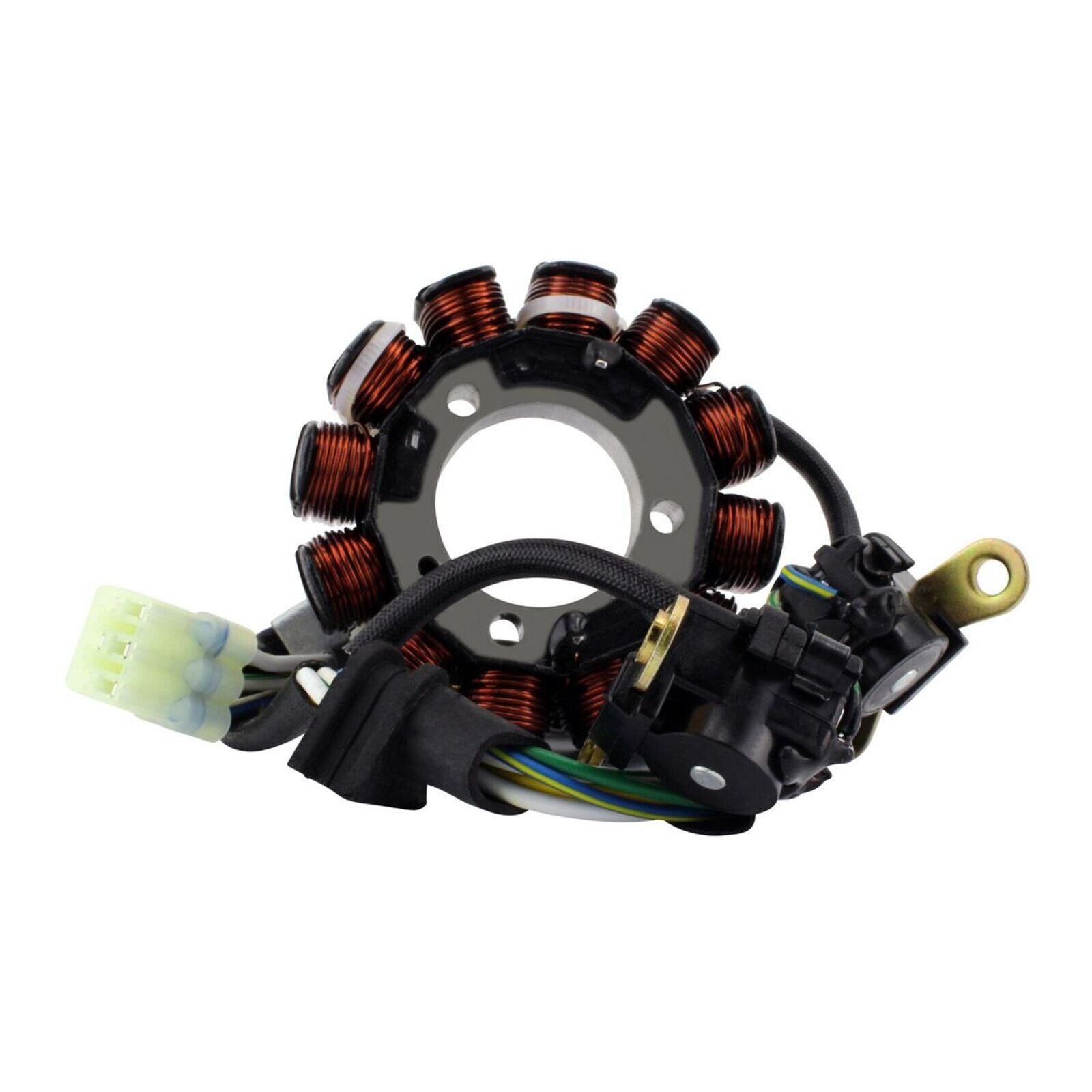

• Pick up pulsar coil included

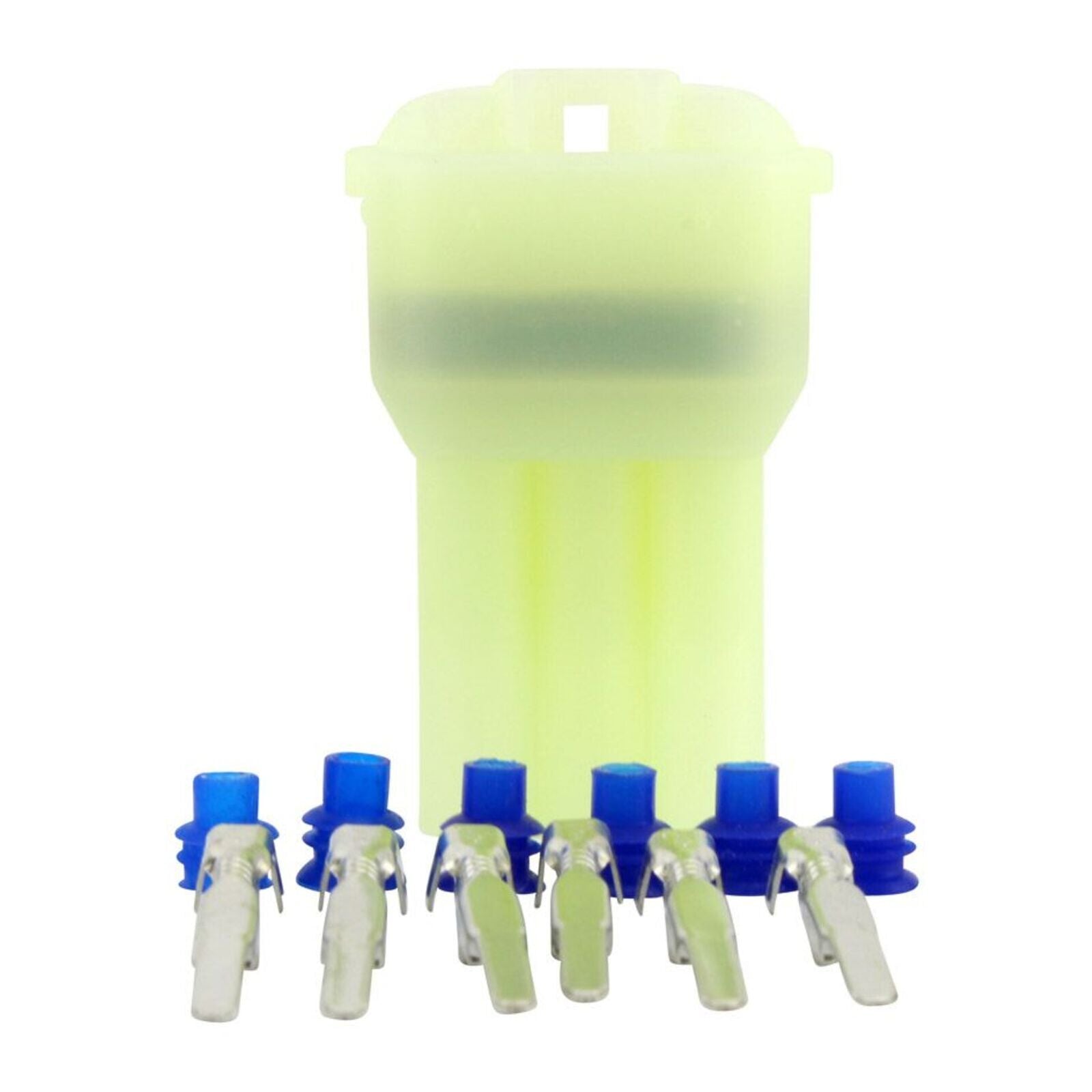

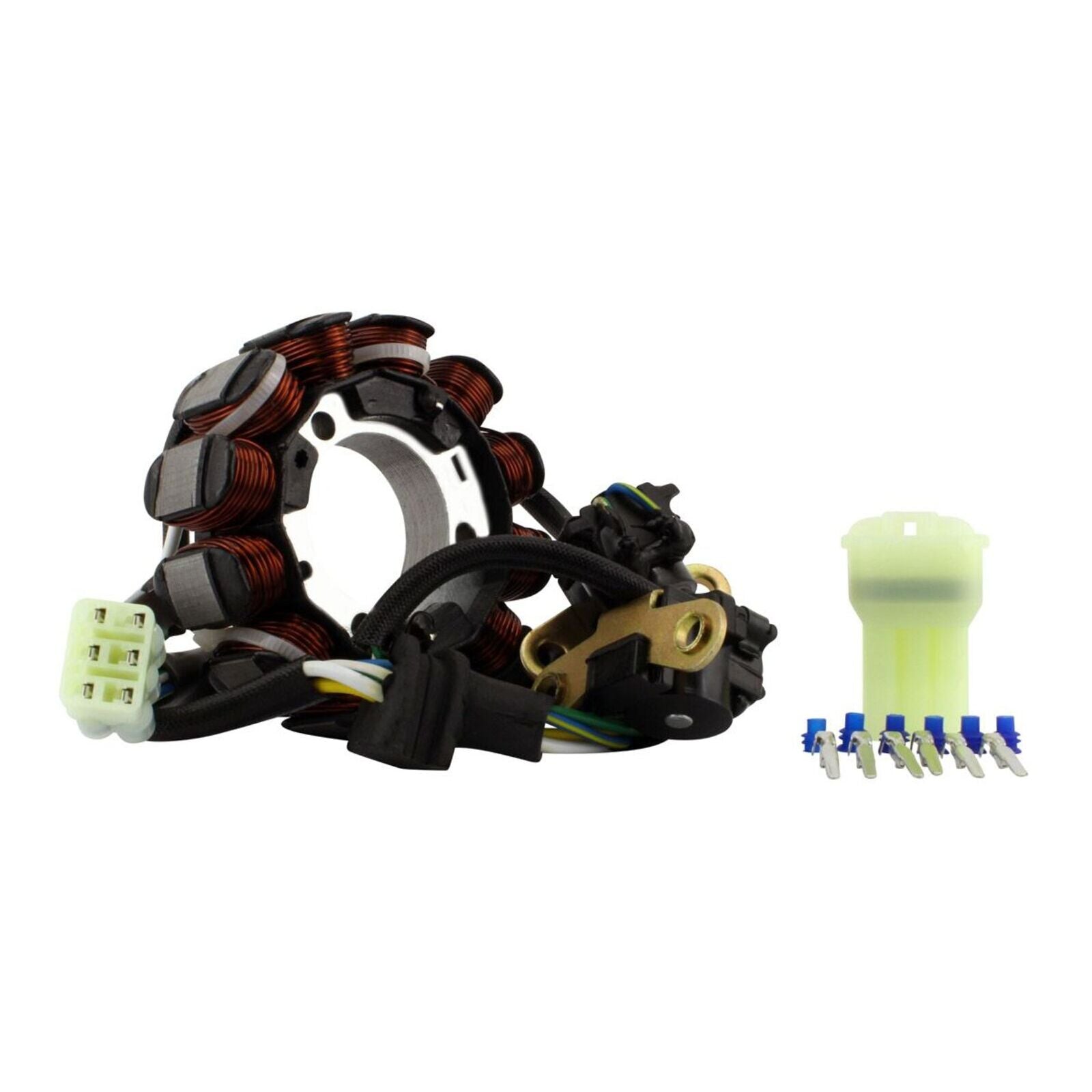

• Connectors included
• Rubber grommet included
• All products shipped are tested

20% MORE OUTPUT OVER STOCK, WORKS WITH ALL OTHER OEM COMPONENTS.

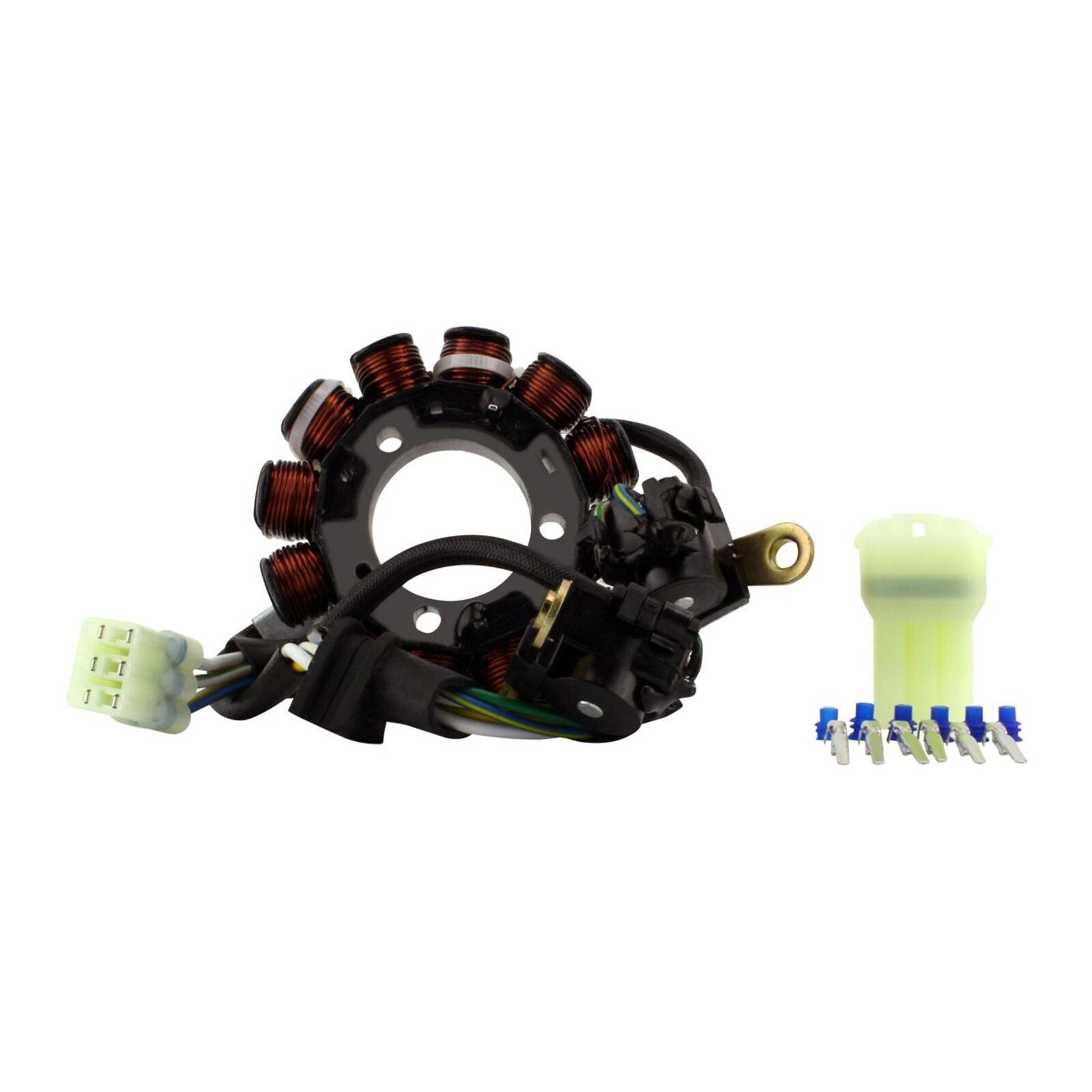

We have even included the opposite connector (main harness side) as we know these are often melted / corroded / defective and a major cause of repetitive electrical issues.

All item pictures are accurate; if in doubt, do not hesitate to compare The item to the original part.

Before installing the new stator:

• Check the AC output of the stator.
• Replace any burned or corroded connectors on stator and regulator rectifier.
• Check and repair any melted wiring.
• Use hi-temp dielectric grease on all connectors.

The stator may use a different wire colThe code than the original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible, no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing.
Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

• Interior diameter: 32 mm
• Exterior diameter: 77 mm
• Thickness: 12.7 mm
• Length of wires stator to grommet: 70 mm
• Length of wires grommet to plug: 160 mm
• Length of pickup coil's wire to grommet: 60 mm and 200 mm

Other specifications:

• Number of wires: 6
• Number of plugs: 1
• Number of pins: 6
• Number of poles: 12
• Wire to wire resistance:
• Alternator: White to Yellow = 2 ohms +/-20%
• Alternator: White to ground = O.L
• Pickup 1: Blue/Yellow to Green/Yellow = 242 ohms +/-20%
• Pickup 2: Green to White/Yellow = 242 ohms +/-20%
