Stator Honda CB250 Nighthawk '91-'08 (RMS010-103816)

SKU: RMS010103816
Currently Out Of Stock
  • NZ Warehouse
  • No Stock In-Store
For store pickup please contact us.

Regular price $406.99
Regular price Sale price $406.99

Earn 406 Moto1 Points

Title

In stock online

Ships from our NZ warehouse in 1–2 business days

Out of stock online

Check back for further stock

Moto1 Paeroa: In storeNot in store

For store pickup please contact us

  • Earn 1 Moto1 Point per $1 spent — 100 points = $5 off. New members get 50 points.
  • Free NZ shipping over $149 (excl. rural & bulky items)
  • Ships in 1–2 business days from our NZ warehouse
  • 90-day returns
  • NZ price match
Shipping details
Returns policy

Price match request

Stator Honda CB250 Nighthawk '91-'08 (RMS010-103816) STATOR HON CB250 NIGHTHAWK 1991-2008 (RMS010-103816) SKU RMS010103816 Our price $406.99

We'll match a lower advertised price from another New Zealand retailer on the same item (same brand, model, colour and size). Clearance products are excluded.

Found it cheaper overseas? Send it through anyway. Once GST and freight are added the gap often closes, and we'll compare it on a landed-cost basis.

Product Description

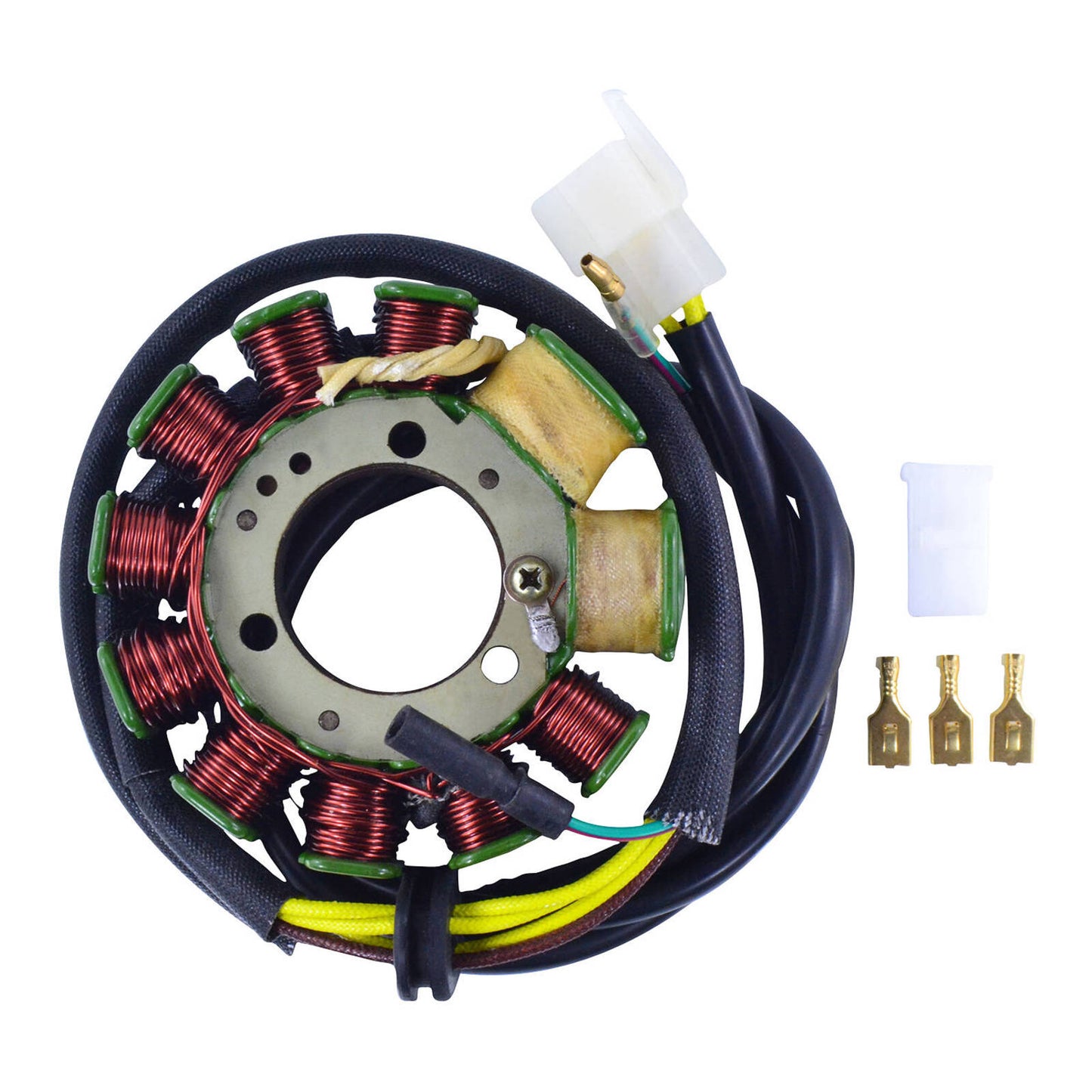

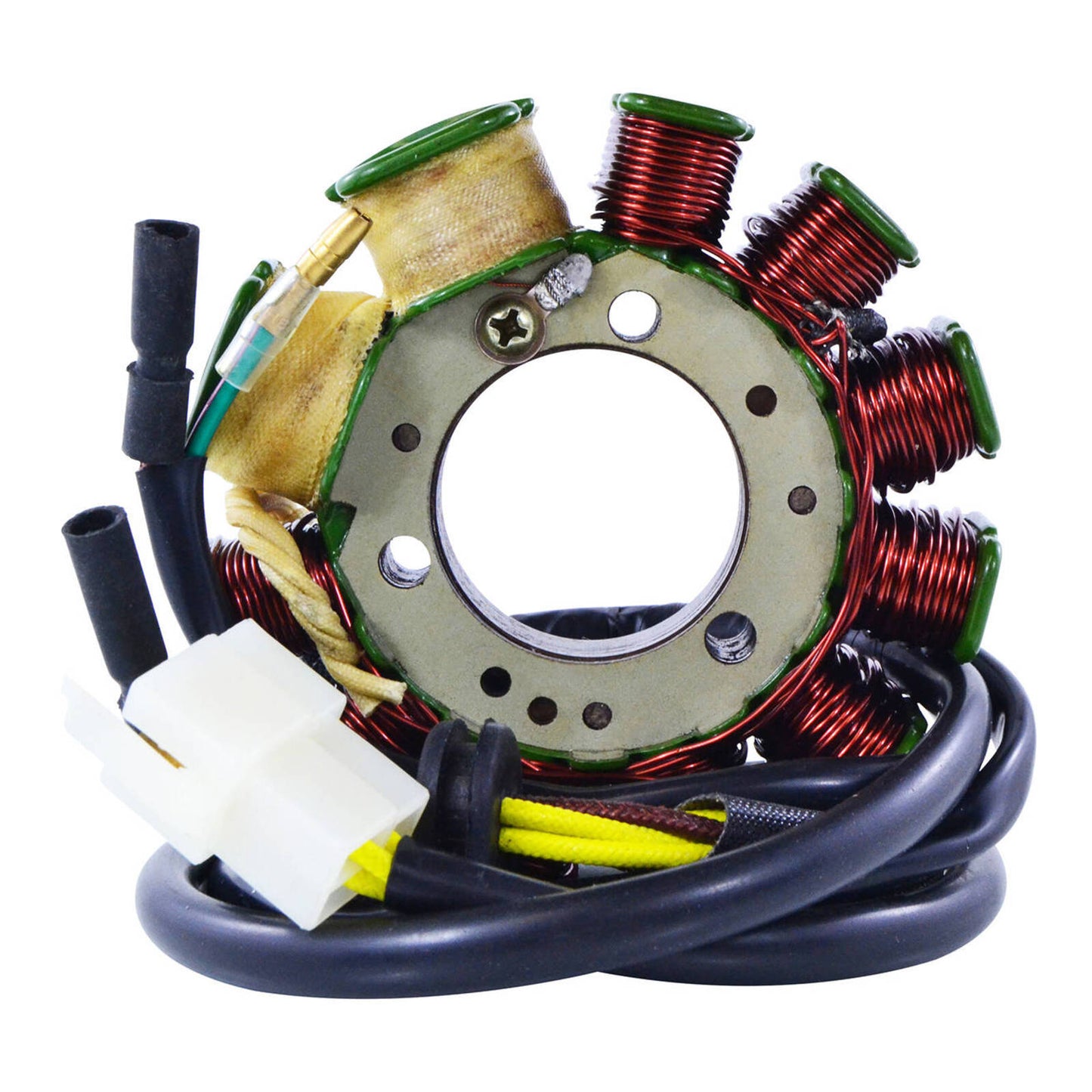

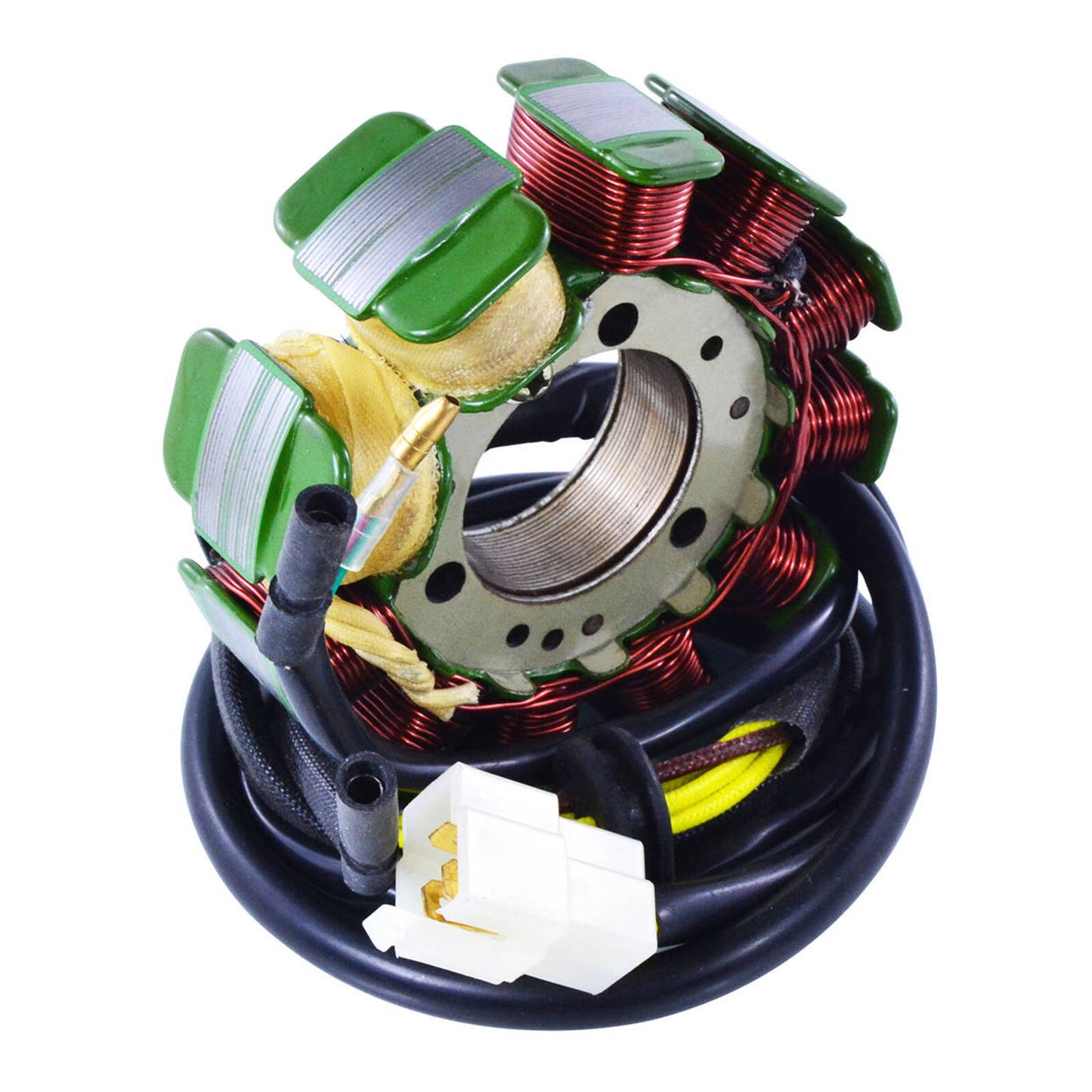

Brand new aftermarket stator.

  • Direct replacement to the original unit
  • Plug-and-play, direct fit, easy installation
  • Highest grade lamination materials
  • Highest grade copper windings, resistant to 200 degrees Celsius.
  • Connector included
  • Rubber grommet included
  • All products shipped are tested

We have even included the opposite connector (main harness side) as we know these are often melted, corroded, defective and a major cause for repetitive electrical issues.

All item pictures are accurate; if in doubt do not hesitate to compare The item to the original part.

Before Installing the New Stator

  • Check the AC output of the stator
  • Replace any burned or corroded connectors on stator and regulator/rectifier
  • Check and repair any melted wiring
  • Use hi-temp dielectric grease on all connectors

The stator may use a different wire colThe code than the original. All of the wires are installed in the correct order; please do not change any of the wiring configurations. This stator is designed as a direct plug-in replacement and should be used as such. When bolting stator in, always use locking compound. If The stator includes a pickup coil, always make sure the air gap is correct upon installation; we suggest as close as possible no less than 0.010".

Warning:

Risk of electric shock. Disconnect the battery before servicing. Ensure proper installation by a qualified technician to avoid malfunction.

Dimensions:

  • Interior diameter: 35 mm
  • Exterior diameter: 93 mm
  • Thickness: 18 mm
  • Length of wires stator to grommet: 120 mm
  • Length of wires grommet to plug: 760 mm

Other Specifications:

  • Number of wires: 6
  • Number of plugs: 4
  • Number of pins: 6
  • Wire to wire resistance:
  • Alternator: Between each Yellow = 0.4 ohms ±20%
  • Source: Black/Red to Ground = 200 ohms ±20%
