Product Description

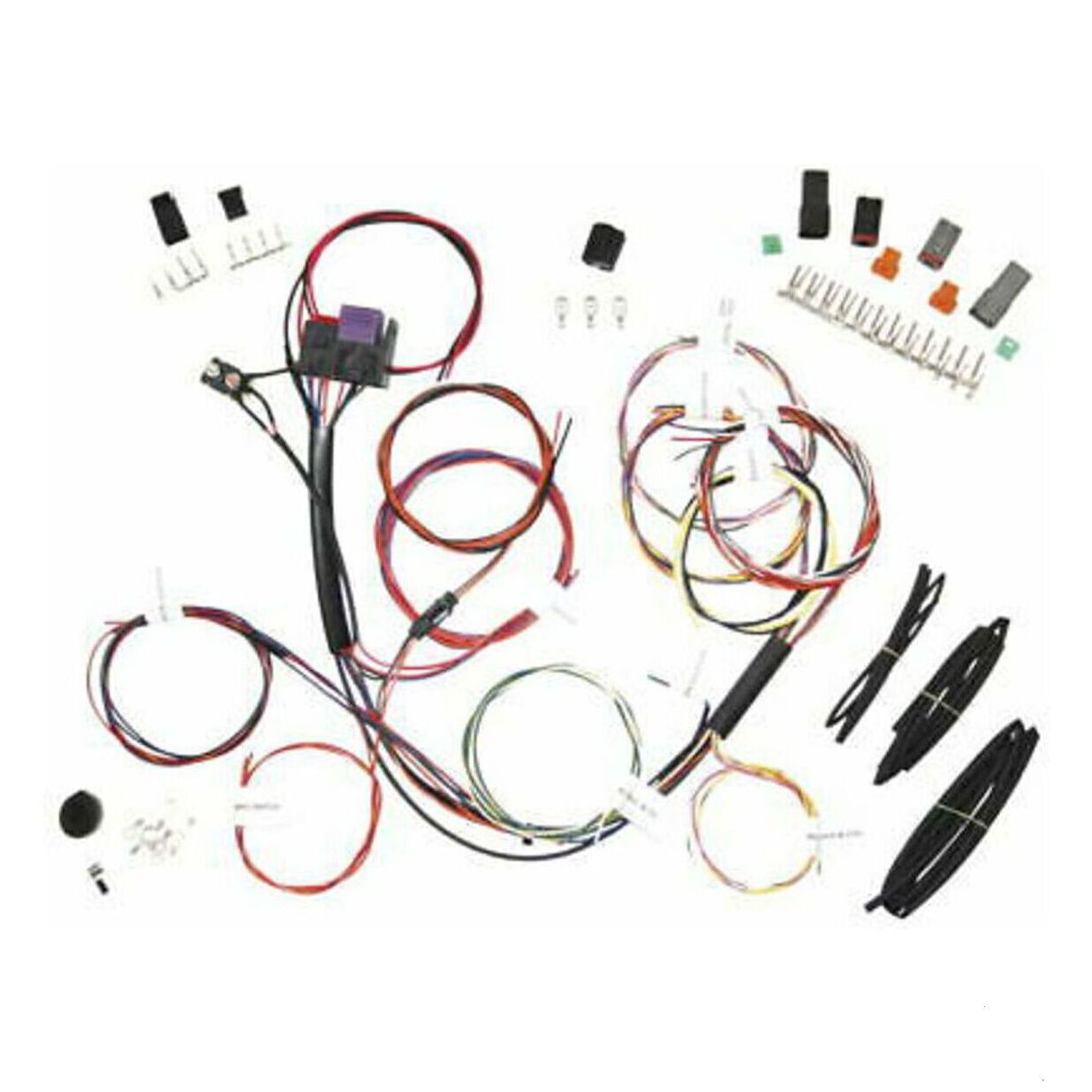

NAMZ Custom Cycle Products Complete Bike Harness
NAMZ Complete Bike Harness with Starter Relay, 3-Circuits, Self Canceling and Run, Brake & Turn Signal Module
The NCBH-01-A complete motorcycle harness is the perfect start for any project bike or OEM model re-wire.
OEM color-matching harness with 11-second self canceling turn signal module
Fuse block holds a full size, commonly available & replaceable starter relay and (3) ATO fuses
A 30-Amp circuit breaker is installed and is ready for any regulator/charging system
Harness provides running light and turn signal functions to the front turn signals, run, brake and turn signal functions for the rear turn signals
Oil, neutral, high beam, and turn signal indicator wiring
Color matching handlebar switch wiring as found on '96-'13 non-glide models
Headlight wiring with headlight socket and terminals
Front turn signal connectors and terminals
Rear fender harness with connectors and terminals
Key switch wiring with ring terminals
Coil wire with ring terminals, tachometer, horn, oil sending unit, brake switch and neutral switch wiring with terminals
Sections of 3/16 in., 1/4 in., 3/8 in. and 1/2 in. ID heat shrink included
Heavy gauge 12 (+) power and (-) ground wires with terminals for battery connection
NOTE : Key start switches can be used with a simple wiring modification. (Ignition system and key switch are not included with this harness)
NOTE : Works with any stand alone, Evo or Twin Cam ignition system. Designed to operate with a two-position key switch
Included Items:
(1) Wire harness
(1) 1/2 in. ID x 4' shrink tubing
(1) 3/8 in. ID x 2' shrink tubing
(1) 1/4 in. ID x 6' shrink tubing
(1) 1/8 in. ID x 4' shrink tubing
(1) 3/16 in. ID x 6' shrink tubing
(4) Black flag wire terminals
(2) 1/4 in. ring terminals
(1) Headlight socket
(3) Female spade connectors
(1) 1/4 in. ring terminals
(5) 3/16 in. ring terminals
(1) Headlight socket
(3) Female spade connectors
(1) 1/4 in. cap terminal
(2) Orange wedge locks
(2) Green wedge locks
(12) Male bullet terminals
(12) Female bullet terminals
(1) Black female 6 pin plug
(1) Black male 6 pin plug
(1) Gray male 6 pin plug
(1) Female 6 pin plug
(10) Female bullet terminals
(10) Male bullet terminals
(1) Black flat male 6 pin plug
(1) Black flat female 6 pin plug
(1) Black flat male 4 pin plug
(1) Black flat female 4 pin plug
Instructions
FITMENT INFORMATION
NAMZ Complete Bike Harness with Starter Relay & 3-Circuits (2019 Ver-1)
Part Number : NCBH-01-C
NCBH-01-C
NAMZ Custom Cycle Products Complete Bike Harness
NAMZ Complete Bike Harness with Starter Relay, 3-Circuits, Self Canceling and Run, Brake & Turn Signal Module
The NCBH-01-A complete motorcycle harness is the perfect start for any project bike or OEM model re-wire.
OEM color-matching harness with 11-second self canceling turn signal module
Fuse block holds a full size, commonly available & replaceable starter relay and (3) ATO fuses
A 30-Amp circuit breaker is installed and is ready for any regulator/charging system
Harness provides running light and turn signal functions to the front turn signals, run, brake and turn signal functions for the rear turn signals
Oil, neutral, high beam, and turn signal indicator wiring
Color matching handlebar switch wiring as found on '96-'13 non-glide models
Headlight wiring with headlight socket and terminals
Front turn signal connectors and terminals
Rear fender harness with connectors and terminals
Key switch wiring with ring terminals
Coil wire with ring terminals, tachometer, horn, oil sending unit, brake switch and neutral switch wiring with terminals
Sections of 3/16 in., 1/4 in., 3/8 in. and 1/2 in. ID heat shrink included
Heavy gauge 12 (+) power and (-) ground wires with terminals for battery connection
NOTE : Key start switches can be used with a simple wiring modification. (Ignition system and key switch are not included with this harness)
NOTE : Works with any stand alone, Evo or Twin Cam ignition system. Designed to operate with a two-position key switch
Included Items:
(1) Wire harness
(1) 1/2 in. ID x 4' shrink tubing
(1) 3/8 in. ID x 2' shrink tubing
(1) 1/4 in. ID x 6' shrink tubing
(1) 1/8 in. ID x 4' shrink tubing
(1) 3/16 in. ID x 6' shrink tubing
(4) Black flag wire terminals
(2) 1/4 in. ring terminals
(1) Headlight socket
(3) Female spade connectors
(1) 1/4 in. ring terminals
(5) 3/16 in. ring terminals
(1) Headlight socket
(3) Female spade connectors
(1) 1/4 in. cap terminal
(2) Orange wedge locks
(2) Green wedge locks
(12) Male bullet terminals
(12) Female bullet terminals
(1) Black female 6 pin plug
(1) Black male 6 pin plug
(1) Gray male 6 pin plug
(1) Female 6 pin plug
(10) Female bullet terminals
(10) Male bullet terminals
(1) Black flat male 6 pin plug
(1) Black flat female 6 pin plug
(1) Black flat male 4 pin plug
(1) Black flat female 4 pin plug
Instructions
FITMENT INFORMATION
NAMZ Complete Bike Harness with Starter Relay & 3-Circuits (2019 Ver-1)
**** PLEASE NOTE ***** : NCBH-01-C
These are performance and custom aftermarket products sourced to match or exceed original specifications as an alternative to the OEM version. Any Harley-Davidson part numbers referenced are for identification purposes only.
