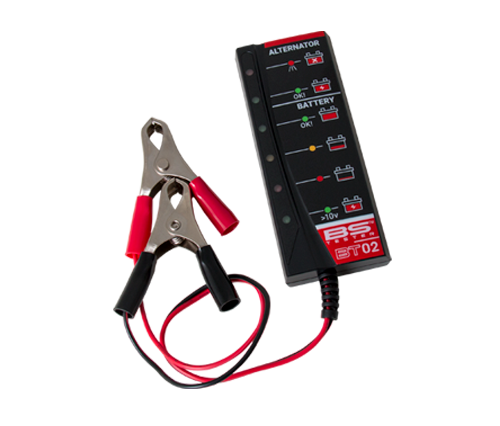

BS BT02 BATTERY AND ALTERNATOR TESTER

The BT02 is a battery & alternator tester designed to save time on electrical issues, it gives a instant diagnosis.

With all the features inside an automatic, you cannot use it wrong.

FEATURES

• For 12V battery
• Test the condition of your battery and alternator
• Connect the crocodile clip to battery terminal and check alternator or battery
• Easy to use

INSTRUCTIONS

1. Connect the red crocodile clip to the positive (+) battery terminal
2. Connect the black crocodile clip to the negative (-) battery terminal

Battery Check

• Switch on the vehicle lights for 1-2 minutes
• Disconnect the battery from the vehicle
• Wait 10 minutes
• Connect the tester

Alternator Check

• Run the vehicle with all electrical equipment off (lights, radio...)
• Run the vehicle with all electrical equipment on (lights, radio...)
• The green LED should light on both tests meaning the alternator is GOOD
• A red LED indicates the alternator is over charging : must be controlled
• No LED light indicates the alternator may not be charging : must be controlled
